Brand  Visaton Vendor Part Number  VS-DL13/2T  EAN Number  4007540501628

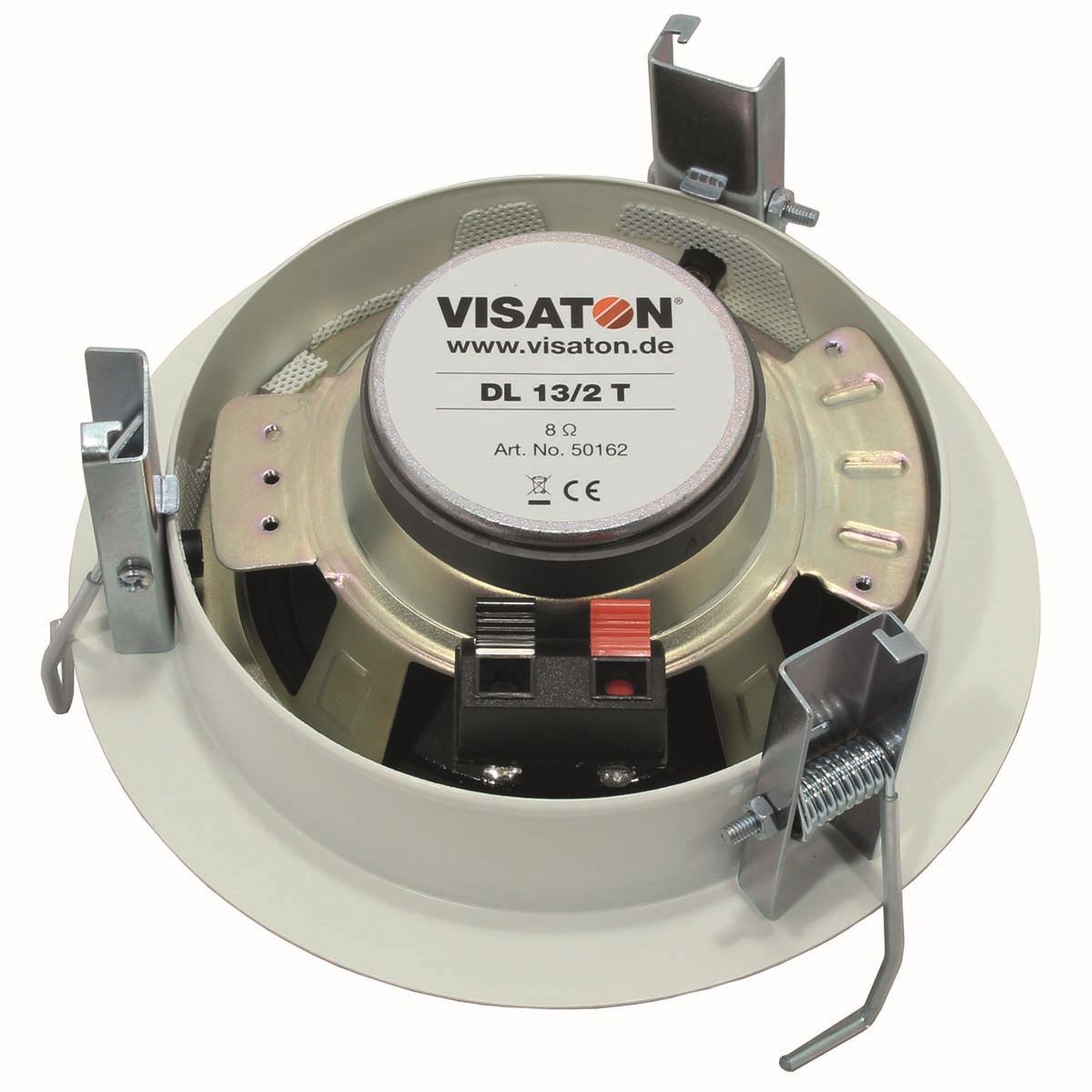

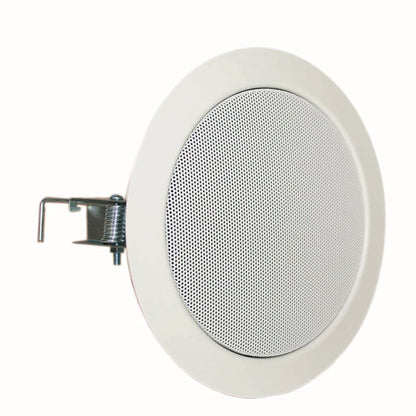

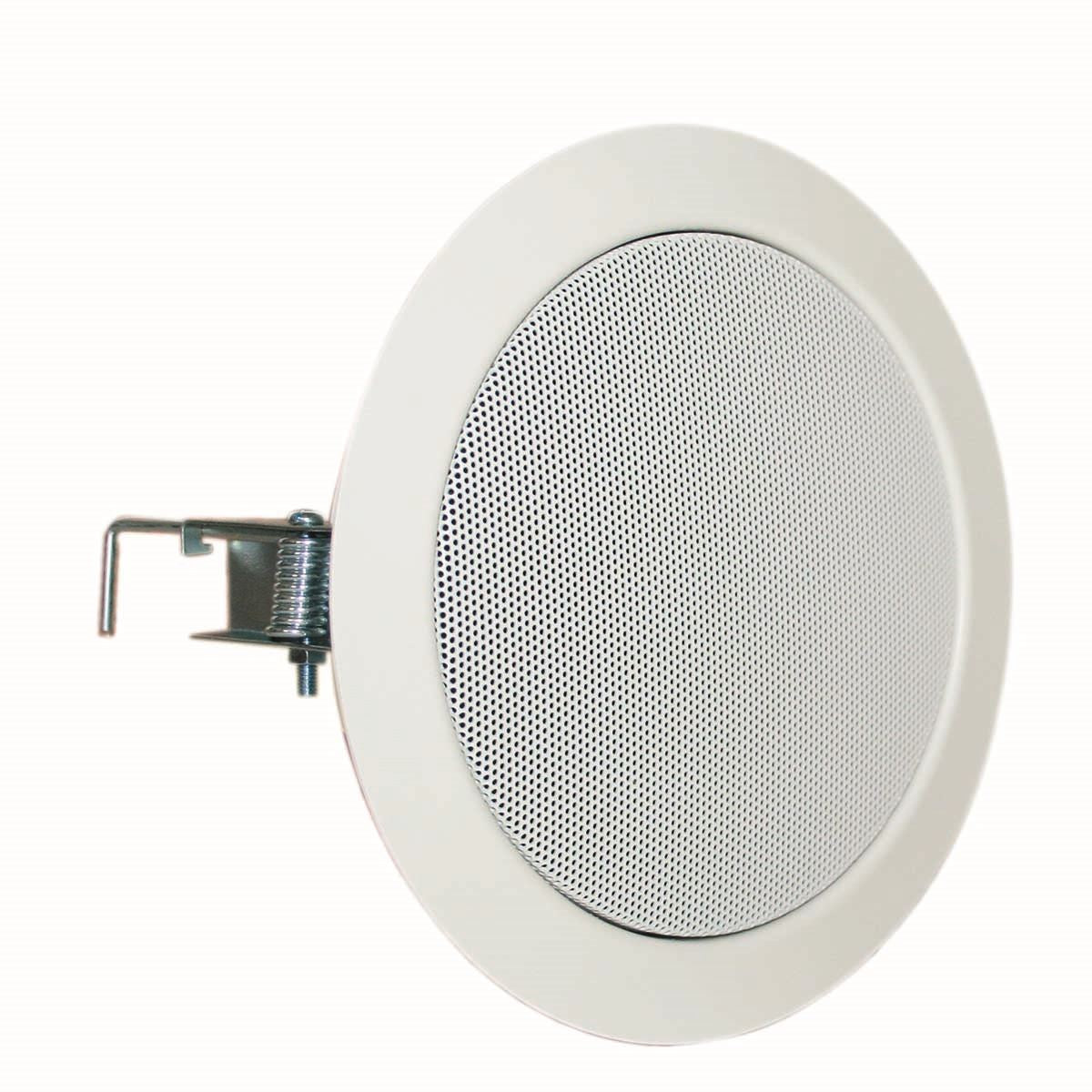

13 cm (5") HiFi-ceiling speaker with corrosion free grille, suitable for the installation in suspended ceilings of any material.
Equipped with a 2-way coaxial driver. Quick snap-in mounting due to round ceiling cut-out through which the speaker with mounting ring can be installed.
A push-terminal block allows a quick and easy connection.
A quick-mounting bayonet connection provides an easy installation of the grille.
Speaker cabinet systems for concrete ceilings are available from KAISER, 58579 Schalksmühle, Germany.
The KompaX cabinet series is suitable for our ceiling speakers.
Some additional front parts maybe necessary (front rings, mineral fibreboard etc.).
More details are available on the Homepage of KAISER (Housing for lamps and loudspeakers).
In order to get more detailed information, press the "Technical information" button of the particular product.
Fire protection housing systems (F30) are also available (FlamoX).

Typical applications
• For suspended ceilings in shops, private accomodation, bathrooms etc.
Details

13 cm (5") HiFi-ceiling speaker with corrosion free grille, suitable for the installation in suspended ceilings of any material. Equipped with a 2-way coaxial driver. Quick snap-in mounting due to round ceiling cut-out through which the speaker with mounting ring can be installed. A push-terminal block allows a quick and easy connection. A quick-mounting bayonet connection provides an easy installation of the grille.

Typical applications:
• For suspended ceilings in shops, private accomodation, bathrooms etc.

Case Quantity

8

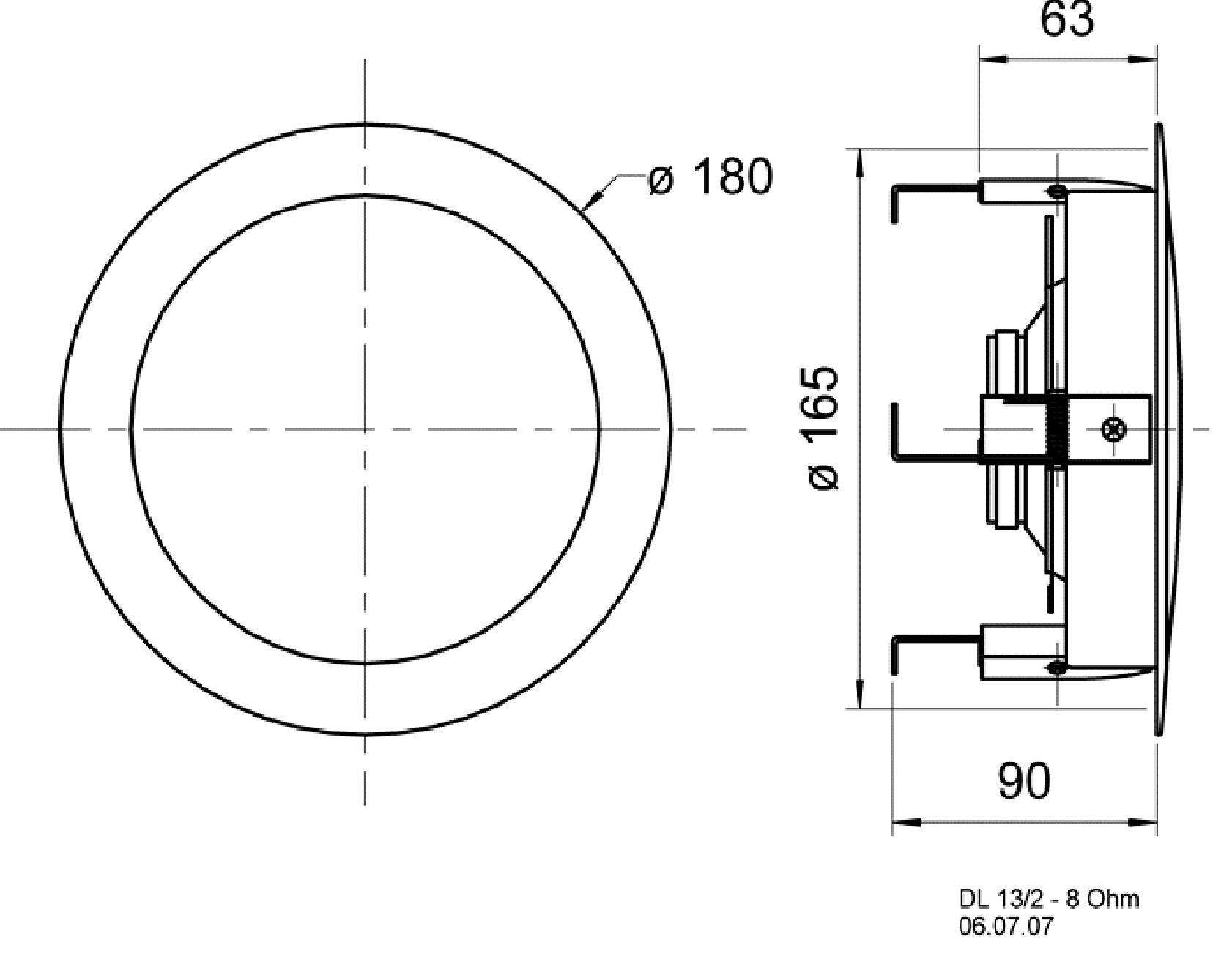

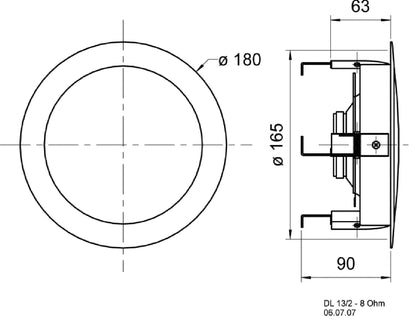

Dimensions
